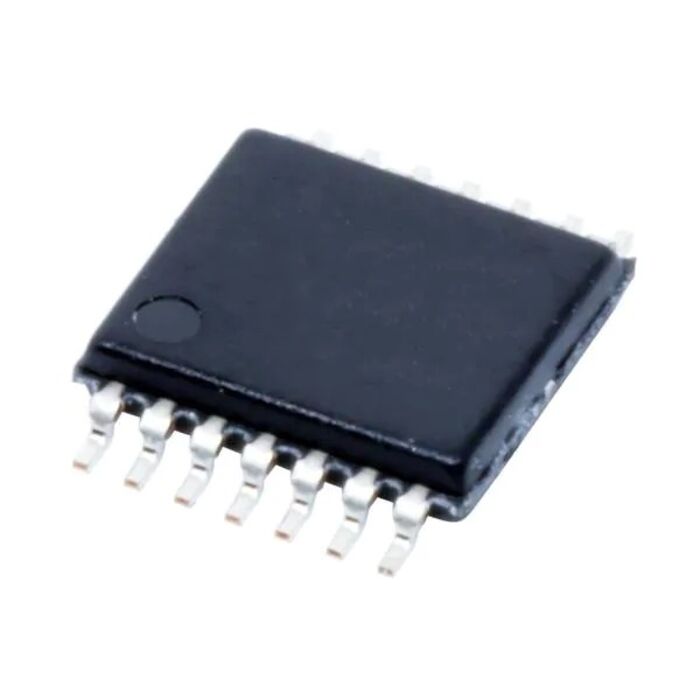

SN74LV132APW

Description

brand:

Texas Instruments

weight:

10.00g

Number of Input Lines:

2 Input

Logic Function:

NAND

Function:

NAND

Operating Temperature Range:

- 40 C to + 125 C

Propagation Delay Time:

11 ns

Low Level Output Current:

12 mA

Mounting Style:

SMD/SMT

Length:

5 mm

Supply Voltage - Max:

5.5 V

Input Type:

Schmitt Trigger

Brand:

Texas Instruments

Series:

SN74LV132A

Minimum Operating Temperature:

- 40 C

Manufacturer:

Texas Instruments

Subcategory:

Logic ICs

Product Type:

Logic Gates

Package / Case:

TSSOP-14

Maximum Operating Temperature:

+ 125 C

Factory Pack Quantity:

90

Packaging:

Tube

Product Category:

Logic Gates

Operating Supply Voltage:

3.3 V

Width:

4.4 mm

Height:

1.15 mm

Operating Supply Current:

20 uA

Supply Voltage - Min:

2 V

Unit Weight:

0.002018 oz

Product:

Single-Function Gate

Logic Type:

Nand Gates With Schmitt Trigger Inputs

Output Type:

TTL

Number of Gates:

4 Gate

DataSheet:

SN74LV132APW.pdf

Logic Gates Quad Schmitt Trig
