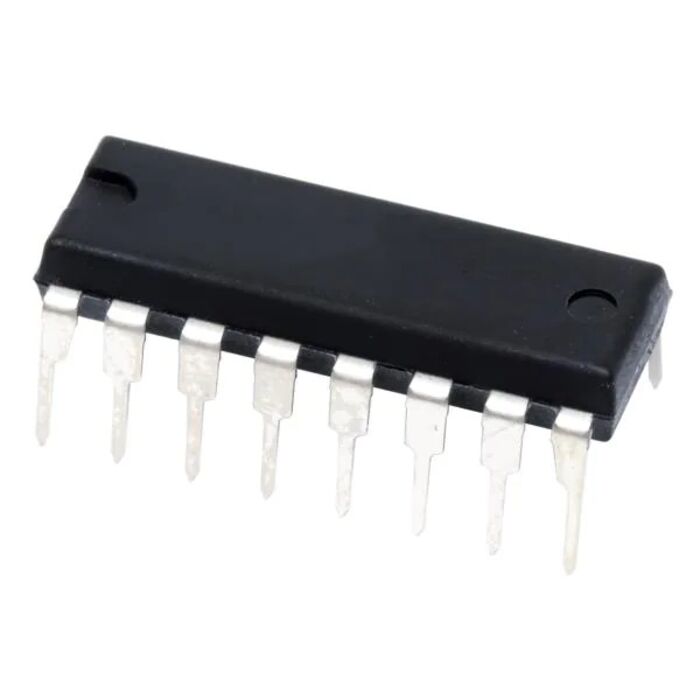

SN74ALS257AN

Description

brand:

Texas Instruments

weight:

10.00g

Number of Input Lines:

2 Input

Function:

Multiplexer

Operating Temperature Range:

0 C to + 70 C

Propagation Delay Time:

12 ns

Low Level Output Current:

24 mA

Mounting Style:

Through Hole

Length:

19.3 mm

Supply Voltage - Max:

5.5 V

Brand:

Texas Instruments

Series:

SN74ALS257A

Minimum Operating Temperature:

0 C

Manufacturer:

Texas Instruments

Subcategory:

Logic ICs

Product Type:

Encoders, Decoders, Multiplexers & Demultiplexers

Package / Case:

PDIP-16

Maximum Operating Temperature:

+ 70 C

Factory Pack Quantity:

25

Packaging:

Tube

Product Category:

Encoders, Decoders, Multiplexers & Demultiplexers

Technology:

Bipolar

Operating Supply Voltage:

5 V

Width:

6.35 mm

Height:

4.57 mm

Supply Voltage - Min:

4.5 V

Unit Weight:

0.033570 oz

Product:

Selectors / Multiplexers

Logic Type:

Data Selectors/Multiplexers

Number of Circuits:

Quad

Maximum Clock Frequency:

75 MHz

DataSheet:

SN74ALS257AN.pdf

Encoders, Decoders, Multiplexers & Demultiplexers Quad 2-to-1 Data Slct/Mltpx W/3St Otp
